Standard Free-Type Gas Springs: Reliable Lift Assistance for Furniture, Vehicles, and Equipment

Standard free-type gas springs are compact pneumatic support components designed to make lifting, opening, positioning, and closing tasks easier and safer. Also called free gas springs, standard support struts, or simple gas struts, they are widely used wherever a movable panel, lid, door, cover, or hatch requires controlled assistance. Their applications range from furniture and office equipment to vehicle tailgates, automotive hoods, equipment enclosures, and public advertising kiosks.

The operating principle is straightforward, but the engineering behind dependable performance is precise. A gas spring uses compressed nitrogen inside a sealed cylinder to generate an outward force through a piston rod. Hydraulic oil inside the cylinder provides damping as the rod moves. When the gas spring is correctly selected and installed, the component can counterbalance part of the weight of a moving panel, reduce the effort required from the user, and help prevent sudden movement during opening or closing.

The standard free-type design is especially valuable because it combines practical functionality, broad size availability, simple installation, and cost-effective construction. Unlike lockable gas springs, it does not hold the mechanism at every intermediate position. Instead, it provides natural support throughout the operating range and reaches its mechanical limits at the fully extended and fully compressed positions. This makes it an efficient choice for applications in which a cover or door needs assisted movement rather than adjustable locking.

With a selection of pipe diameters, rod diameters, center distances, strokes, and force ratings, this gas spring range can be adapted to different load conditions and installation spaces. Available cylinder options include seamless precision steel tubing and stainless steel, allowing designers to select a suitable material for indoor furniture, industrial equipment, automotive applications, and environments where enhanced corrosion resistance is required.

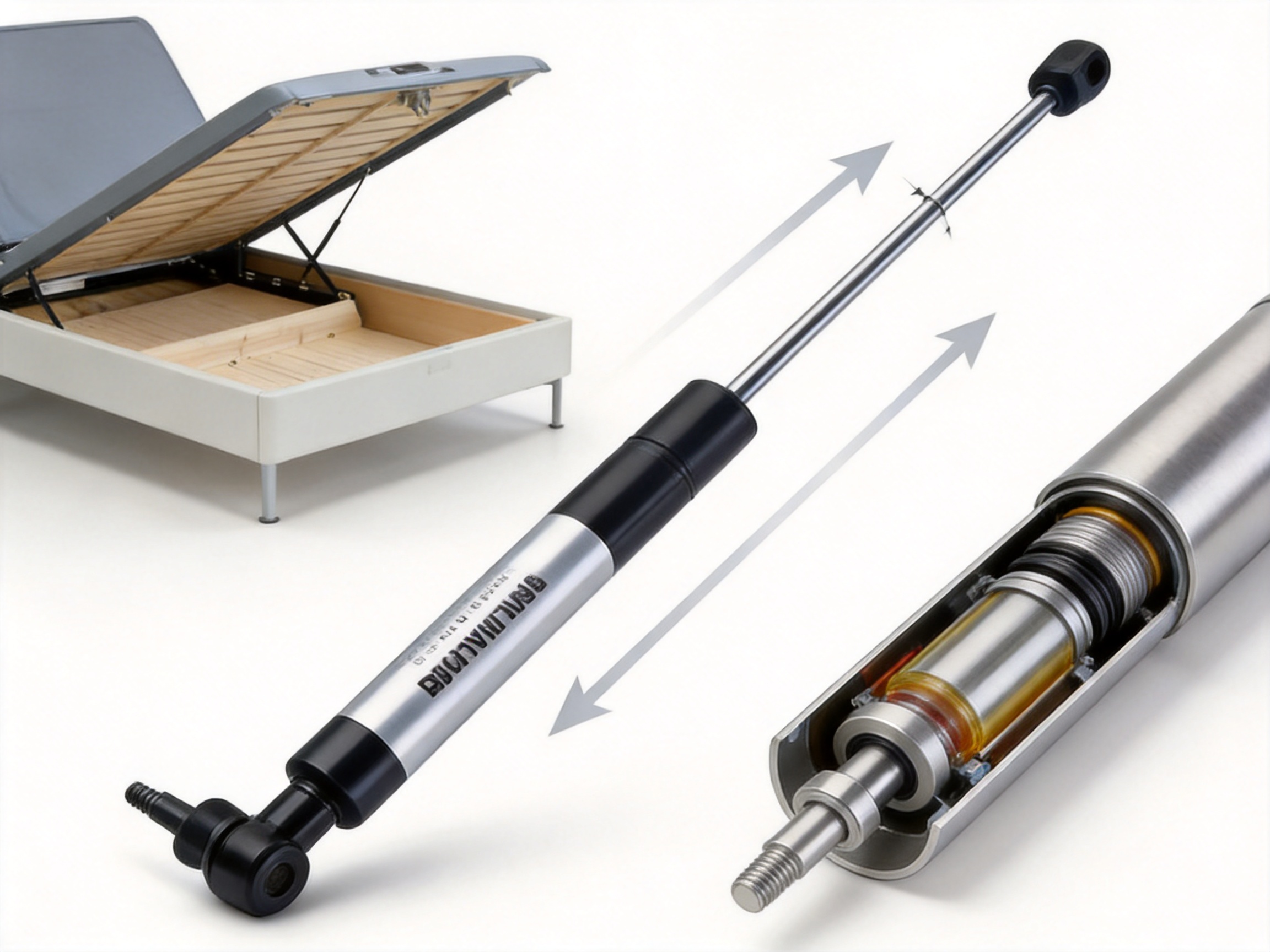

Standard free-type gas spring

What Is a Standard Free-Type Gas Spring?

A standard free-type gas spring is a sealed mechanical support device that stores energy in compressed nitrogen. The principal parts normally include a pressure cylinder, piston, piston rod, guide assembly, seal system, damping oil, and end fittings. The cylinder contains high-pressure nitrogen and hydraulic oil. The piston separates or controls the internal working areas, while the rod transmits the generated force to the connected structure.

When the rod is pushed into the cylinder, the internal gas is compressed. This creates a restoring force that attempts to extend the rod. The force assists the opening of a lid or panel and helps support the weight of the connected component. As the rod moves, the hydraulic oil passes through controlled internal pathways. This produces resistance and moderates the speed of movement, particularly near the end of the stroke.

The term “free-type” describes the movement behavior of the gas spring. The rod can move freely through its working stroke when the external load and installation geometry allow it. The spring does not include a locking mechanism for holding an intermediate position. It therefore differs from lockable gas springs, which can be stopped and retained at selected points along the stroke.

This simple design is one of its major advantages. Fewer functional mechanisms can reduce complexity, installation difficulty, and cost. For many applications, an intermediate locking function is unnecessary. A cabinet door may only need to open and remain supported in its extended position. A vehicle hood may only require assistance during lifting and controlled support while open. An equipment cover may need to rise smoothly and close without impact. In these situations, a standard free-type gas spring provides the necessary performance without adding unnecessary features.

How the Gas Spring Works During Opening and Closing

During opening, the gas spring’s internal pressure assists the user or actuator by producing an outward force on the piston rod. The amount of assistance depends on the specified gas pressure, the effective piston area, the mounting geometry, and the weight and center of gravity of the supported panel. Correct selection allows the user to open the panel with substantially less effort than would otherwise be required.

During the open position, the extended gas spring helps support the panel. It does not replace every structural stop or safety support, so the application should still be designed with appropriate mechanical limits where necessary. The gas spring provides support and damping, while the surrounding structure determines the final opening angle and load path.

During closing, the external force pushes the piston rod back into the cylinder. The hydraulic oil creates resistance as it passes through internal damping passages. This resistance reduces the speed of the moving panel and helps prevent hard impact at the end of travel. The result is a quieter and more controlled closing action.

The damping behavior is particularly useful in products used frequently by different users. Office furniture, storage equipment, vehicle compartments, and public kiosks can experience repeated opening and closing cycles. A controlled movement reduces noise, improves perceived quality, and helps protect hinges, covers, handles, and surrounding structures from unnecessary impact.

Product Specifications and Available Configurations

The standard free-type gas spring range is available in multiple combinations of cylinder diameter, rod diameter, center distance, stroke, and force. These variables allow the component to be matched to the available installation space and the required lifting assistance.

Pipe Diameter and Rod Diameter	Center Distance	Stroke	Pressure or Force Range
15 mm / 6 mm	150–300 mm	40–110 mm	20–300 N
18 mm / 8 mm	150–600 mm	40–250 mm	30–500 N
22 mm / 10 mm	200–400 mm	60–160 mm	50–1,000 N
22 mm / 10 mm	400–500 mm	160–200 mm	50–1,000 N
22 mm / 10 mm	500–600 mm	200–250 mm	50–1,000 N
22 mm / 10 mm	600–700 mm	250–300 mm	50–1,000 N
22 mm / 10 mm	700–800 mm	300–340 mm	50–1,000 N
22 mm / 10 mm	900 mm	400 mm	50–1,000 N
22 mm / 12 mm	500–1,000 mm	200–450 mm	500–1,500 N
28 mm / 14 mm	500–1,000 mm	200–450 mm	500–2,000 N

The figures in the table provide a practical starting point for product selection. Final selection should consider more than the static weight of the panel. Important factors include the panel’s center of gravity, the distance between the hinge and the gas spring mounting point, the opening angle, the number of gas springs, the desired opening effort, and the operating temperature.

For relatively compact lids and lightweight panels, the 15–6 mm and 18–8 mm configurations can offer an efficient balance between size and support. The 22–10 mm series provides a broad working range and is suitable for many medium-sized covers, doors, and equipment panels. Larger 22–12 mm and 28–14 mm configurations are appropriate when greater force or longer stroke capacity is required.

Center distance is the overall length of the gas spring between the relevant mounting points when the component is measured in its specified condition. Stroke describes the available movement of the rod. Both dimensions must be checked carefully against the application geometry. A gas spring with an unsuitable stroke may fail to open the panel far enough, reach its limit too early, or interfere with the structure during operation.

Advantages Compared with Basic Mechanical Supports

Traditional mechanical supports such as simple hinges, rigid stays, springs, or manually operated braces can perform basic positioning functions, but they may not provide the same combination of assistance and damping. A conventional hinge allows rotation but does not reduce the lifting force. A rigid stay may hold a cover open but often requires manual placement and removal. A basic coil spring can provide assistance, but its movement may be less controlled and more difficult to package.

A gas spring combines lifting support and controlled movement in a single compact component. This reduces the need for separate support hardware and can simplify the product architecture. The sealed cylinder protects the internal working medium from ordinary external contamination, while the integrated damping function supports a smoother user experience.

Another advantage is the broad range of available force ratings. Designers can select a gas spring appropriate for a light furniture lid or a heavier equipment cover without changing the basic operating principle. This makes the product family useful for different sectors while maintaining a familiar installation method.

The standard free-type gas spring can also improve ergonomic performance. Users do not need to lift the entire weight of a panel at once. The gas spring supplies assistance through the movement, reducing strain on hands, shoulders, and back. This is especially important for frequently accessed storage compartments, office furniture, vehicle hatches, and service panels.

Compared with electrically powered opening systems, a free gas spring does not require wiring, a motor, a controller, or an external power supply. That makes it easier to install in compact products and suitable for locations where electrical access is limited. It can also provide support during power loss because its operating force is stored mechanically within the pressurized cylinder.

Advantages Compared with Lockable Gas Springs

Lockable gas springs are valuable when a panel must be held at various intermediate positions. However, the locking mechanism adds complexity and may increase size, cost, and installation requirements. Many applications do not require intermediate locking. If the cover only needs to move between closed and open positions, a free-type gas spring can be the more practical solution.

The free design generally offers straightforward operation. Users open the panel, and the gas spring assists the movement. Users close the panel, and the gas spring provides damping as it retracts. There is no release button, cable, locking sleeve, or additional control action. This simplicity can be beneficial in furniture, vehicle components, and public-use equipment where intuitive operation is important.

A simpler structure may also make inspection and replacement easier. Maintenance personnel can identify the cylinder, rod, and end fittings without managing a complicated locking assembly. When a gas spring reaches the end of its service life, the component can normally be replaced as a complete sealed unit, subject to the product design and applicable safety procedures.

Materials and Cylinder Construction

The cylinder is a critical part of a gas spring because it must contain the pressurized nitrogen and guide the internal components through repeated movement. The product range supports cylinder options including seamless precision steel tubing and stainless steel. Material selection should be based on the required strength, appearance, environmental exposure, and corrosion resistance.

Seamless precision steel tubing offers a strong and stable foundation for standard applications. Precision dimensions support consistent internal assembly and help maintain reliable interaction between the piston, seals, and cylinder wall. Steel construction is widely suitable for indoor furniture, equipment enclosures, automotive components, and general industrial applications when the surrounding environment is appropriately controlled.

Stainless steel can be selected for applications exposed to moisture, cleaning processes, or more demanding atmospheric conditions. It may be suitable for particular vehicle environments, public installations, or products in which corrosion resistance and appearance are important. The appropriate stainless-steel grade and surface treatment should be evaluated according to the actual application rather than selected solely by appearance.

The piston rod is also important. It must provide sufficient strength and dimensional stability while moving through the seal and guide assembly. Surface quality, straightness, and protection against corrosion affect the long-term operating behavior of the gas spring. A well-designed rod and sealing system help limit gas leakage and maintain consistent performance over repeated cycles.

Manufacturing Strengths and Engineering Capability

The manufacturer behind this product range is a professional enterprise engaged in research and development, production, sales, and service for standing desks and related hardware solutions. Based in Suzhou, a major manufacturing area in the Yangtze River Delta, the company benefits from access to an established industrial supply chain and a strong regional manufacturing base.

This industrial environment supports coordinated sourcing of metal tubing, precision components, fittings, seals, surface treatments, packaging materials, and related manufacturing services. A complete supply network can shorten communication cycles between engineering and production, improve responsiveness to custom requirements, and support stable product planning for international customers.

The company’s intelligent manufacturing orientation is relevant to gas spring production because these components require repeatable dimensions, controlled assembly, reliable pressure filling, and consistent testing. A process-based manufacturing system can help reduce variation between batches. It can also support traceability from incoming materials through machining, assembly, pressure charging, inspection, and final packing.

Research and development capability is another important strength. Gas spring performance is closely connected to application geometry. The same force rating may behave differently depending on the hinge location, panel weight, opening angle, and number of springs. Technical support during product selection can therefore be as important as the component itself. Engineering teams can assist customers in defining dimensions, force, stroke, end fittings, and material options before production.

Production, sales, and service are managed as connected functions rather than isolated activities. This structure helps the manufacturer understand the customer’s complete requirement, from initial application analysis to product delivery and after-sales support. For original equipment manufacturers and furniture producers, this integrated approach can improve communication during sample development and mass production.

Customization is also an important part of modern gas spring supply. Customers may require different center distances, strokes, force values, cylinder materials, end fittings, surface finishes, packaging formats, or labeling arrangements. A flexible manufacturer can use its standard component platform as a foundation while adjusting the specification to match the customer’s equipment or furniture design.

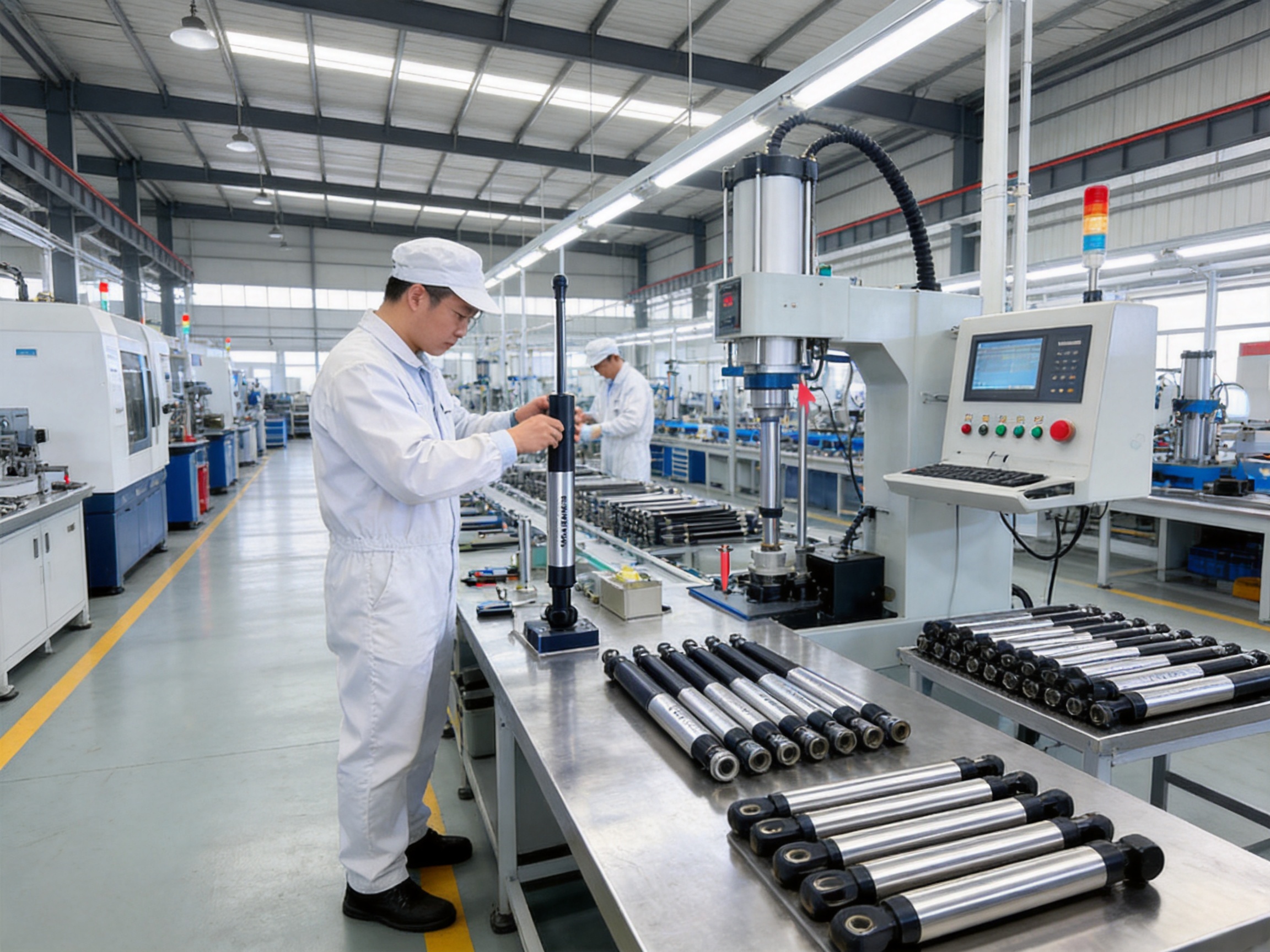

Process Control from Tube Preparation to Final Assembly

Reliable gas spring production begins with appropriate raw material control. Tubing, rods, seals, oil, fittings, and other components should be evaluated against the design requirements before entering production. Dimensional consistency is important because the internal assembly depends on controlled clearances and accurate alignment.

Tube preparation may include cutting, end processing, cleaning, and dimensional inspection. The cylinder must provide a suitable internal surface for the piston and seals. Any contamination, burrs, or dimensional irregularity may influence friction, leakage, or damping behavior. A disciplined preparation process helps create a stable foundation for assembly.

Rod preparation involves accurate sizing and surface treatment appropriate to the product specification. The rod must pass smoothly through the guide and sealing system. Its surface condition affects friction, seal wear, and resistance to external exposure. Protective packaging and careful handling are also important because scratches or dents can affect installation and service life.

Internal assembly requires controlled placement of the piston, guide, seals, damping components, and hydraulic oil. The oil quantity and internal configuration influence the damping effect. The assembly process must be carried out consistently to reduce performance differences between units.

After assembly, nitrogen is introduced to the specified pressure. The final force depends on the gas pressure and the internal geometry, so pressure filling must be controlled carefully. The gas spring must then be checked for leakage, movement, dimensional compliance, and functional behavior. This is especially important for products intended for repeated operation or safety-relevant access panels.

Final inspection may include visual examination, dimensional measurement, extension and compression checks, force verification, and sealing inspection. Depending on the customer’s requirements, additional sampling or cycle testing may be applied. The precise inspection plan should be defined according to the product design, intended application, and order specification.

Intelligent manufacturing methods can support the consistency of these operations by using defined work instructions, controlled process parameters, inspection records, and standardized assembly stations. The goal is not simply to produce a gas spring that works once, but to deliver repeatable performance across production batches.

Applications in Furniture and Adjustable Office Products

Gas springs are widely used in furniture because they make large or heavy panels easier to operate without adding a bulky mechanism. In storage cabinets, they can assist upward-opening doors and lids. In office furniture, they can support access panels, equipment compartments, and movable surfaces. In specialized furniture, they can help position covers and create a more refined user experience.

For standing desks and adjustable office products, a gas spring may be used in supporting structures, storage elements, monitor compartments, or foldable work surfaces. The actual specification depends on the panel mass and movement requirements. A low-force spring may be appropriate for a small cover, while a larger panel may require two springs or a higher force rating.

Product designers should consider the visible appearance of the gas spring in furniture applications. A compact cylinder can be easier to integrate into a clean design. The mounting points should be positioned so that the gas spring does not interfere with drawers, cables, hinges, or user access. End fittings can be selected according to the available frame and panel construction.

Noise control is also important in office environments. The oil-damped closing action can reduce sharp impacts and improve the perceived quality of the furniture. This is useful in shared workspaces, meeting rooms, education environments, and home offices where repeated slamming or vibration would be distracting.

Automotive and Transportation Applications

Automotive tailgates, hoods, trunks, storage compartments, and service covers frequently use gas springs. The vehicle environment demands attention to temperature changes, vibration, dirt, moisture, and repeated operation. Material selection, sealing, mounting orientation, and force specification should therefore be evaluated carefully.

For a tailgate, the gas spring assists the user during lifting and helps hold the tailgate in the open position. For a hood, it can replace a manual prop rod or work together with the vehicle’s structural support system. The spring must be selected so that it provides enough assistance without making the panel difficult to close.

Vehicle applications also demonstrate the importance of correct force balance. A gas spring that is too weak may fail to support the panel. One that is too strong may require excessive closing effort or place unwanted stress on hinges and mounting brackets. The ideal specification provides controlled assistance across the operating temperature range expected by the vehicle.

Stainless-steel cylinder options may be considered for applications exposed to moisture or demanding conditions. However, the complete assembly must be evaluated, including rods, fittings, seals, brackets, and mounting hardware. Corrosion resistance is a system consideration rather than a feature of the cylinder alone.

Equipment Enclosures and Industrial Covers

Industrial equipment often requires removable or hinged covers for inspection, maintenance, ventilation, and access to internal components. These covers may be too heavy or awkward to handle without assistance. A gas spring can help technicians open the cover and keep it supported while work is performed.

In equipment enclosures, the gas spring can also reduce the chance of uncontrolled movement. A damped closing action helps protect the enclosure frame, hinges, latches, and internal components. The compact form makes it possible to install the support inside the enclosure or along the side of the cover, depending on the design.

Engineers should verify that the gas spring is not exposed to loads outside its intended direction. The mounting brackets should be sufficiently strong, and the extended and compressed lengths should be checked against all moving parts. If the application is exposed to heat, chemicals, dust, or outdoor weather, the material and seal requirements should be discussed before specification.

Public Kiosks and Advertising Structures

Bus shelter advertising kiosks and similar public structures may use gas springs to support service doors and access panels. Such products are opened by maintenance personnel but may be exposed to weather, vibration, and frequent public activity. A controlled support mechanism makes servicing more efficient and helps reduce the risk of a panel dropping unexpectedly.

Because public equipment must often remain visually attractive, a well-finished gas spring can integrate cleanly into the structure. Stainless-steel options may be suitable where moisture resistance and appearance are priorities. The gas spring should be paired with robust hinges, brackets, and mechanical stops to ensure that the entire door system remains secure.

Installation and Selection Considerations

Correct installation is essential for achieving the expected performance. The gas spring should be mounted in the intended orientation and connected through suitable end fittings. The mounting brackets must be aligned so that the rod is not subjected to excessive side loading or bending. Misalignment can increase friction, damage seals, and shorten service life.

The first selection factor is the required force. Engineers should calculate the panel weight and consider the distance from the hinge to the panel’s center of gravity. The distance between the hinge and the gas spring mounting point has a major effect on the lifting moment. A gas spring mounted farther from the hinge may generate more useful rotational assistance than one installed close to the hinge.

The second factor is the number of gas springs. Some applications use one spring positioned along the centerline, while wider or heavier panels may use two springs placed on opposite sides. Two springs can distribute the load more evenly, but their force ratings and installation positions should be matched.

The third factor is stroke and center distance. The gas spring must fit within the available space when closed and provide enough travel when open. Designers should model the entire movement path, including brackets and end fittings. Clearance should be checked at both extremes and through the intermediate positions.

The fourth factor is operating environment. Indoor furniture may require a standard steel construction, while outdoor or moisture-exposed equipment may benefit from stainless steel or additional protective treatments. Temperature, cleaning chemicals, salt exposure, dust, and ultraviolet exposure may influence the choice of materials and seals.

Finally, the application should include appropriate mechanical stops where necessary. The gas spring should not be used as the only stop if the design could impose impact loads on the cylinder or rod. External stops can define the final opening and closing positions, protecting both the gas spring and the surrounding structure.

Maintenance, Safety, and Service Life

Standard free-type gas springs are sealed and generally maintenance-free during normal service. Users should not attempt to open, drill, heat, weld, or refill the cylinder. The internal gas is pressurized, and unauthorized modification can create a serious hazard.

Routine inspection can focus on the external condition of the component and the connected structure. Check for visible rod damage, corrosion, oil leakage, loose fittings, bent brackets, unusual noise, or a noticeable reduction in support force. If the gas spring no longer holds the panel properly or movement becomes uncontrolled, it should be evaluated and replaced as necessary.

Cleaning should be performed with methods compatible with the cylinder, rod, and surface treatment. Abrasive tools and aggressive chemicals may damage protective finishes or seals. The rod should remain clean and free from sharp contamination that could be carried into the sealing area.

Service life depends on load, cycle frequency, temperature, installation quality, storage conditions, and environmental exposure. A gas spring operating within its specified force and stroke range is more likely to provide stable performance than one continually overloaded or forced beyond its design limits.

For safety-related covers, replacement should use a component with matching dimensions and force characteristics. Installing an incorrectly rated gas spring may cause the cover to rise too quickly, fail to stay open, or impose excessive stress on the structure.

Why a Specialized Manufacturer Matters

Gas springs may appear simple from the outside, but consistent performance depends on many connected details. A specialized manufacturer can provide support in product selection, application review, dimension confirmation, sampling, and production planning. This reduces the risk of choosing a component based only on nominal length or force.

A manufacturer with research and development, production, sales, and service capabilities can support the entire customer process. During the development stage, the engineering team can review the application geometry and recommend a suitable specification. During production, standardized processes can improve batch consistency. During delivery, packaging and labeling can be arranged for the customer’s supply chain. After delivery, technical communication can assist with installation and product feedback.

The Suzhou manufacturing location provides access to a mature furniture and hardware ecosystem. This is particularly relevant for customers producing adjustable office tables, ergonomic office furniture, equipment supports, and related mechanical products. The company’s focus on intelligent manufacturing and office-space solutions creates a practical connection between gas spring production and the broader needs of modern furniture manufacturers.

For international buyers, supplier communication is also important. Clear technical drawings, specification tables, sample approvals, inspection requirements, and packaging instructions help prevent misunderstandings. A supplier that treats these documents as part of the manufacturing process can contribute to smoother project execution.

Customization for OEM and Project-Based Requirements

Standard products provide an efficient starting point, but many projects require adjustments. A customer may need a special center distance to fit an existing cabinet, a specific stroke to achieve a target opening angle, or a particular force rating to balance a panel. Different end fittings may be necessary for a metal frame, wooden panel, molded enclosure, or automotive bracket.

Customization can also involve cylinder materials and appearance. Steel may be selected for general applications, while stainless steel may be requested for environmental or aesthetic reasons. Surface finishes, protective treatments, product labels, carton markings, and packing quantities may be adapted to the customer’s distribution system.

The best approach is to define the application before finalizing the gas spring. Useful information includes the panel dimensions, panel weight, hinge position, desired opening angle, available mounting points, cycle frequency, operating temperature, environmental exposure, and preferred installation orientation. Drawings or photographs can further improve technical accuracy.

Sample testing is recommended before mass production. A prototype gas spring can be installed on the actual structure to evaluate opening effort, closing speed, holding behavior, clearance, bracket strength, and user experience. Feedback from this test can guide changes to the force, stroke, or mounting position.

Quality-Oriented Supply for Global Customers

Global customers require more than a component that meets a basic dimensional description. They need stable supply, clear documentation, dependable communication, and predictable production arrangements. A professional manufacturing partner should be prepared to discuss product specifications, sample approval, order quantities, inspection expectations, packaging, and delivery coordination.

Quality-oriented production begins with a clear specification. The pipe diameter, rod diameter, center distance, stroke, force range, material, fittings, finish, and packing method should be recorded in an agreed technical document. Any special requirement should be confirmed before production begins.

Production consistency is supported by controlled material purchasing, standardized assembly, pressure management, inspection procedures, and careful handling. The goal is to ensure that units supplied in one order perform in a consistent manner and that future orders can reproduce the approved specification.

For manufacturers of adjustable office tables and ergonomic furniture, this consistency can be especially valuable. A gas spring may be only one part of the complete product, but its movement affects the user’s perception of the entire assembly. Smooth operation, low noise, and reliable support contribute to the quality of the finished product.

Frequently Asked Questions

What does “free-type” mean in a gas spring?

Free-type means that the gas spring moves through its stroke without a mechanism for locking at intermediate positions. It assists opening, supports the panel when extended, and provides damping during closing. It normally reaches its functional limits at the fully extended and fully compressed positions.

Can a standard free-type gas spring hold a lid open?

Yes. When correctly selected and installed, it can help support a lid or door in the open position. The application should still include suitable hinges, brackets, and mechanical stops where required. The gas spring should not be treated as the only structural safety element unless the complete design has been evaluated for that purpose.

How is a gas spring different from a regular mechanical spring?

A gas spring uses compressed nitrogen inside a sealed cylinder and normally includes hydraulic damping oil. It provides a controlled supporting force and smoother movement. A regular mechanical spring may provide restoring force but often does not offer the same integrated damping or compact cylinder arrangement.

How should the force rating be selected?

Selection should consider panel weight, center of gravity, hinge position, mounting distance, opening angle, number of gas springs, and desired user effort. The nominal weight alone is not enough to determine the correct force. Application testing is recommended before finalizing the specification.

Are gas springs maintenance-free?

The sealed design is generally maintenance-free during normal operation. However, the exterior and mounting points should be inspected periodically for damage, corrosion, leakage, loose fittings, or reduced support force. A damaged or weakened gas spring should be replaced rather than opened or repaired internally.

Can the gas spring be used outdoors?

It may be used in outdoor or moisture-exposed applications when the material, surface treatment, seals, and fittings are selected for the environment. Stainless-steel options may be appropriate for some applications. The complete assembly should be reviewed because corrosion resistance depends on all exposed components, not only the cylinder.

What is the purpose of hydraulic oil inside the cylinder?

The hydraulic oil provides damping. As the piston and rod move, the oil passes through controlled internal paths and resists movement. This helps slow the panel, especially near the end of travel, reducing noise and impact during closing.

Can one gas spring be replaced with a stronger model?

Not automatically. A stronger model may make opening easier but can increase closing effort, stress hinges and brackets, or cause the panel to rise too quickly. Replacement should match the original dimensions and application requirements unless the complete mechanism is re-evaluated.

What information should be provided when requesting a quotation?

Useful information includes the required center distance, stroke, estimated force, pipe and rod diameters, material preference, end fittings, quantity, installation environment, application photographs, and technical drawings. Panel weight and hinge geometry are especially helpful for force selection.

Why is sample testing important?

Sample testing verifies how the gas spring behaves in the actual product. It allows the customer to check opening effort, closing speed, clearance, noise, holding behavior, and bracket strength before mass production. This helps prevent costly changes after the finished product has entered production.

Conclusion

The standard free-type gas spring is a practical and versatile support component for applications that require assisted lifting, controlled movement, and dependable open-position support. Its sealed nitrogen cylinder, hydraulic damping, maintenance-free design, and broad range of dimensions make it suitable for furniture, adjustable office products, automotive components, equipment enclosures, and public kiosks.

Its main advantage is the balance between performance and simplicity. It provides meaningful lifting assistance without electrical power, complex locking mechanisms, or bulky support structures. Compared with basic hinges or rigid stays, it delivers smoother movement and improved ergonomics. Compared with lockable gas springs, it offers a cost-effective solution when intermediate positioning is not required.

The available combinations of pipe diameter, rod diameter, center distance, stroke, and force allow the product to serve both compact and heavy-duty applications. Seamless precision steel tubing supports general-purpose use, while stainless-steel options can be considered for environments requiring enhanced corrosion resistance.

Reliable performance depends on more than the gas spring itself. Correct force selection, accurate mounting geometry, appropriate materials, suitable end fittings, and effective process control are all essential. A manufacturer with research and development, production, sales, service, and intelligent manufacturing capabilities can provide stronger support throughout the product lifecycle.

For customers seeking dependable support hardware for ergonomic furniture, office products, vehicles, or technical enclosures, a well-specified standard free-type gas spring offers a strong combination of function, efficiency, durability, and value.

References

1. General principles of pneumatic gas spring construction, nitrogen charging, piston rod movement, and hydraulic damping.

2. Product specification data for standard free-type gas springs, including pipe diameters, rod diameters, center distances, strokes, and force ranges.

3. Engineering guidance for gas spring selection based on panel weight, hinge geometry, center of gravity, opening angle, and mounting position.

4. Industrial design practices for hinged lids, vehicle hoods, tailgates, equipment enclosures, and furniture access panels.

5. Manufacturing considerations for precision steel tubing, stainless-steel cylinders, sealing systems, pressure filling, assembly control, and final inspection.

6. Workplace and product safety principles for the installation, inspection, replacement, and handling of pressurized gas springs.

Product: Standard free-type gas spring
